GUARDIAN - VOLTAGE STABILIZER (RELAY TYPE or DISCRETE STEP VOLTAGE TYPE) works based on the auto-transformer principle – with stepped voltage outputs. GUARDIAN voltage stabilizers incorporates the HAWK EYE DIGITAL MICROTRONICS.

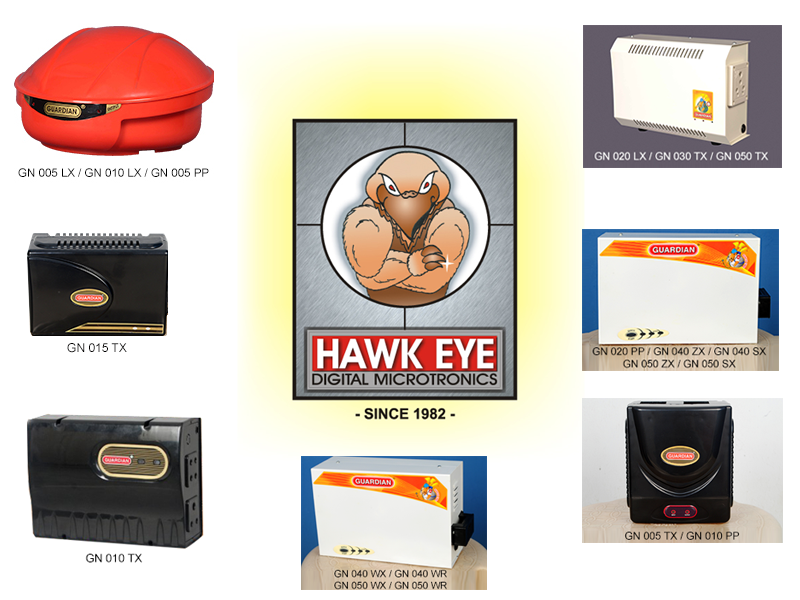

SELECTING OF A MODEL OF VOLTAGE STABILIZER (Relay Type): Relay Type of Voltage Stabilizers are generally of standard capacity ratings (single phase applications) and they are sold mostly specifically for an appliance or gadget. For a given capacity rating of voltage stabilizer – there will be models for different input voltage ranges. Kindly refer to the chart below for various models of GUARDIAN VOLTAGE STABILIZERS.
Kindly refer to the chart attached - which suggests models for a specific application and select the capacity of the model needed.
|GUARDIAN STABILIZER - TECHNICAL SPECIFICATION|
|BRAND / PRODUCT / APPLICATION / MODEL||WORKING VOLTAGE
|TELEVISION / CONSUMER
|Upto 32" LED TV + DTH / DVD||GN 005 TX||145 - 285 V AC||N / N|
|Upto 42" LED TV + DTH / DVD||GN 010 TX||145 - 285 V AC||Y / N|
|Upto 52" LED TV + DTH + DVD +
|GN 010 PP||185 - 255 V AC||Y / N|
|Upto 60" LED TV + DTH + DVD +
|GN 015 TX||145 - 285 V AC||Y / N|
|REFRIGERATOR / COOLER /
|Upto 390 lit Refrigerator||GN 005 PP||185 - 255 V AC||Y / Y|
|Upto 300 lit Refrigerator||GN 005 LX||155 - 280 V AC||Y / Y|
|Upto 300 lit Refrigerator||GN 005 WR||130 - 290 V AC||Y / Y|
|Upto 450 lit Refrigerator||GN 010 LX||155 - 280 V AC||Y / Y|
|Side By Side Door Refrigerator /
Bottle Cooler / Deep Freezer
|GN 020 LX||155 - 280 V AC||Y / Y|
|APPLIANCES / FITNESS EQUIPMENT||Washing Machine / Dish Washer /
MicroWave / Photo Copier /
|GN 015 PP||185 - 255 V AC||Y / N|
|GN 030 TX||145 - 285 V AC||Y / N|
|GN 050 TX||145 - 285 V AC||Y / N|
|AIR-CONDITIONER||1.5 Ton / 2.0 Ton AC||GN 020 PP||185 - 255 V AC||Y / Y|
|Upto 1.5 Ton AC||GN 040 ZX||165 - 275 V AC||Y / Y|
|Upto 1.5 Ton AC||GN 040 SX||165 - 275 V AC||Y / Y|
|Upto 1.5 Ton AC||GN 040 WX||135 - 275 V AC||Y / Y|
|Upto 1.5 Ton AC||GN 040 WR||130 - 290 V AC||Y / Y|
|Upto 1.5 Ton AC||GN 040 EWR||110 - 290 V AC||Y / Y|
|Upto 2.0 Ton AC||GN 050 ZX||165 - 275 V AC||Y / Y|
|Upto 2.0 Ton AC||GN 050 SX||165 - 275 V AC||Y / Y|
|Upto 2.0 Ton AC||GN 050 WX||135 - 275 V AC||Y / Y|
|Upto 2.0 Ton AC||GN 050 WR||130 - 290 V AC||Y / Y|
|Upto 2.0 Ton AC||GN 050 EWR||110 - 290 V AC||Y / Y|
|Upto 2.5 Ton AC||GN 060 SX||165 - 275 V AC||Y / Y|
|Upto 3.0 Ton AC||GN 080 SX||165 - 275 V AC||Y / Y|
|Upto 4.0 Ton AC||GN 100 SX||165 - 275 V AC||Y / Y|
|GENERAL PURPOSE|| Lighting + Fan + Assorted Home
|GN 080 WR||130 - 290 V AC||N / N|
|Applications listed above ( including the appliance / gadget suggestion and its size or capacity ) are for indicative purpose ONLY . Actual may vary. Check the electrical load of each appliance / gadget before connecting. The Working voltage range of each model is indicated – for more details regarding voltage ranges - kindly refer to the voltage range chart in our website. If Time Delay & Cutoff Protection is available for a given model of stabilizer then "Y" is marked and if it is not available "N" is marked.|
Kindly refer to the voltage ranges chart and select the model of GUARDIAN STABILIZER suitable for your requirement.
|GUARDIAN VOLTAGE STABILIZERS – VOLTAGE RANGES & OTHER SPECS|
|MODEL SERIES||WORKING VOLTAGE RANGE||INPUT VOLTAGE RANGE||OUTPUT VOLTAGE RANGE [WITH 220 V AC AS REFERENCE ]|
|EWR||110 – 290 V AC||125 – 280 V AC||+/- 16 %|
|WR||130 – 290 V AC||150 – 280 V AC||+/- 18 %|
|WX||135 – 275 V AC||155 – 260 V AC||+/- 18 %|
|TX||145 – 285 V AC||165 – 275 V AC||+/- 20 %|
|LX||155 – 280 V AC||175 – 270 V AC||+/- 16 %|
|SX||165 – 275 V AC||175 – 260 V AC||+/- 20 %|
|ZX||165 – 275 V AC||170 – 265 V AC||+/- 21 %|
|PP||185 – 255 V AC||185 – 255 V AC||+ / - 16 %|
FREQUENCY RANGE: 47 – 53 Hz.
|WORKING VOLTAGE RANGE : THE RANGE OF VOLTAGE WITHIN WHICH THE STABILIZER WORKS. IN MODELS WITH OUTPUT ISOLATION (CUTOFF) THE OUTPUT IS ISOLATED IF THE VOLTAGE GOES BEYOND (ABOVE OR BELOW) THE WORKING VOLTAGE RANGE.|
INPUT VOLTAGE RANGE: THE RANGE OF VOLTAGE IN WHICH THE STABILIZER GIVES THE SPECIFIED OUTPUT VOLTAGE RANGE.
|OUTPUT VOLTAGE RANGE: THE RANGE OF VOLTAGE GIVEN AS OUTPUT FROM STABILIZER IN THE SPECIFIED INPUT RANGE.|
|NOTE: FOR MODELS IN “PP” SERIES – THE INPUT AND WORKING VOLTAGE RANGES ARE SAME.|
|All Specifications listed above may be changed without any prior notice.|
INSTALLATION / OPERATION OF GUARDIAN VOLTAGE STABILIZER : To ensure optimum performance of your GUARDIAN STABILIZER, kindly take time to read through these instructions / procedures and become familiar with them.
TERMS & CONDITIONS OF WARRANTY OF GUARDIAN VOLTAGE STABILIZERS.
VSOLV ENGINEERING INDIA PRIVATE LIMITED (here in after referred to as VSOLV), assures the original owner of Stabilizer, bearing the serial number mentioned on this warranty card that if the stabilizer has been used under normal conditions, it is covered under warranty against defects arising out of defective materials and / or workmanship as per terms below : (kindly note that certain parts / components have been excluded from warranty)
|GUARDIAN STABILIZER – WARRANTY PERIOD|
|COMPONENTS / PARTS + WORKMANSHIP||
|ONLY WORKMANSHIP / LABOUR||
ONSITE SERVICE: Currently, VSOLV ELECTRONICS offers onsite service for the GUARDIAN Voltage stabilizers sold and installed within Chennai and Kochi city – as a special offer in addition to the limited warranty mentioned herein to its customers located only within these cities. This service is provided FREE for the first twelve months from date of purchase. However, after completion of twelve months visiting charges for onsite service done will be charged as per list below :
|VISITING CHARGES FOR ONSITE SERVICE CALL ( After 12 Months of Purchase )|
|Within City Limit ( Chennai / Kochi )||
|Rs. 250 /=||
VSOLV reserves the right to withdraw this onsite service facility and also to alter, vary or change the charges thereof without any notice at its own discretion. Any such changes will be binding on the customer / user of the product. The charges will be subject to statutory levies at applicable rates.
SELECTION OF A MODEL OF VOLTAGE STABILIZER:
Relay Type of Voltage Stabilizers are generally of standard capacity ratings and they are sold mostly specifically for an appliance or gadget. For a given capacity – there will be models for different input voltage ranges. Kindly refer to the voltage ranges for various models mentioned.
While selecting a model of Servo Controlled Voltage Stabilizer - care should be taken – as the equipment’s connected are very sensitive and critical. Hence, you need to know the exact specified load of the equipment that is to be protected. In case of multiple loads – you need to total up the individual loads. After determining the total load that may be applied – you need to add provision for margin at-least 20 to 30 % additionally – as safety factor. This is done to provide an allowance - such that the servo controlled voltage stabilizers – which are on many occasions made to operate continuously – operate efficiently and also there is provision for accommodating future growth requirements. Thereafter the operating voltage range of the servo controlled stabilizer - need to be selected, based on the incoming voltage. If the fluctuations are large – then wider ranges of incoming voltage need to be selected. Kindly refer to the voltage ranges chart for selecting appropriate model.
